At Interplastica 2014 the members of the Brückner Group present cutting edge innovations for sophisticated applications in the plastics and packaging industries at their booth Forum, FB 46.
Brückner Maschinenbau: Film production lines with increased performance and reduced energy consumption

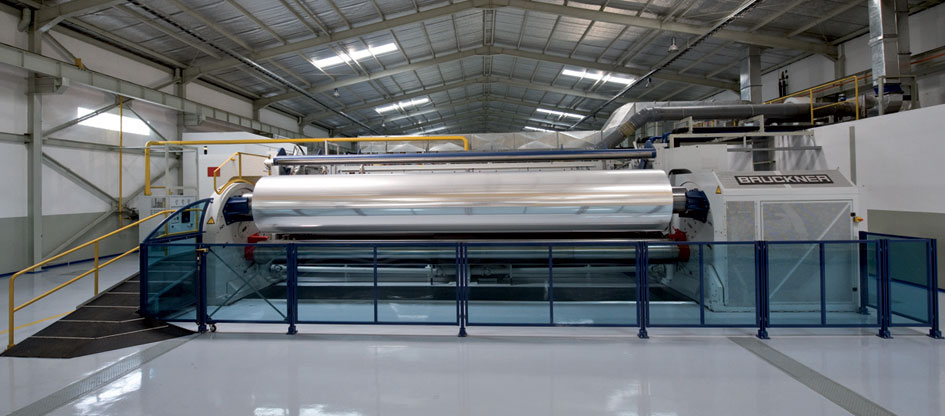

At Interplastica Brückner Maschinenbau will introduce lines for the manufacture of high-quality BOPP films which can achieve working speeds significantly higher than the previous 525 m/min. Therefore Brückner has developed a new, innovative platform with a new transport system in the transverse direction orienter (TDO), a new longitudinal stretching unit (MDO) with automatically adjustable contact rolls, an even more efficient water removal in the area of the chill roll and the newly designed high-speed winding unit.
BOPET lines by Brückner also operate at speeds of over 500 m/min. At Interplastica Brückner will show a number of new developments which will improve still further the film quality, the operating stability and efficiency of the line. For example a completely new automatic control system for the pinning of the film and a newly designed track system in the TDO for unparalleled stability during operations in the high-speed range.
In all lines, Brückner continues to optimise the possibilities for energy savings. The measures presented at Interplastica include technology in both, thermal and electrical respect:
TDO heat recovery systems
Direct drives with water cooled AC motors
Regenerating energy for line drive systems
Intelligent Line Management (ILM) including an energy monitor for measuring and analyzing the energy consumption of the film production process based on the international standard ISO 50001
The new LISIM generation for advanced simultaneous stretching is specially designed for top-quality thinner films of between 0.5 and 75µm, including polyamide packaging films or ultra-thin BOPP and BOPET capacitor films. The new, less expensive system for the simultaneous stretching of thinner films demonstrates considerably higher energy efficiency in the stretching oven – regarding the drive power as well as the ventilation system performance inside the stretching oven.
Brückner Maschinenbau will also show new highlights in specialty film lines, such as PP multi-layer films (5, 7, 9 layers) and trend-setting shrink film lines with various working widths up to 6.2 m and speeds up to 250 m/min for the manufacture of trendy and added value labels, full body sleeves or tamper evident packaging.
Further presented at Interplastica: New developments in the R&D department:
Extension to the existing laboratory line by inline coating (ILC) for BOPP and BOPET films, exploiting new fields of application
Enhanced in-line measuring technology
A second experimental platform in the form of a smaller laboratory line, in which the extrusion, casting and longitudinal stretching process stages will be represented
Brückner’s brand new “Innovation Test Centre” for verifying and validating new equipment developments on several testing devices such as high-speed clip and track test stands in production environment, testing facilities for new roll surfaces and test stands for basic research on simultaneous stretching systems
Brückner Servtec: Efficient operation of existing film stretching lines
Maximizing line output and film quality through upgrades
Upgrade to 5-/7-layer film: enter new markets with higher margin, multi-layer film
Intelligent Line Management (ILM): optimize processes in film manufacturing
Comprehensive services for film stretching lines of any brand
New generation of remote service tools: efficient troubleshooting and fast remote re-start of production
Professional chain and clip refurbishment: save investment costs for new tools and equipment
Plant and energy audits: identify potentials for improvement
Kiefel: Solutions for the packaging, automotive & medical industry
Packaging: Innovative stacking systems increase productivity
Kiefel focuses on “efficient stacking” in the packaging area. The experts in processing plastic film materials present new innovative stacking systems which increase productivity substantially.
Technologies for the automotive industry
Complete solutions for the production of interior trim components, like instrument panels, door panels, consoles and covering elements, map pockets, pillar liners, sun visors.
Innovations for the medical sector
Kiefel will present innovations in the field of processing plastic film materials in the medical sector. One of the highlights is the new solid state generator for the high-frequency welding of medical bags made of PVC.
